ITC 1080P HD Definition Video Conferencing Equipment Conference System with Project Solution

FOB Reference Price:Get Latest Price
US $6,000-8,000 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Audio Conference System, Network Conference System, Video Conference System
Function:
Video conference system
Simultaneous Interpretation:
No
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ITC
Model Number:
TV-60MCU
Item:
ITC 1080P hd video conference system with project solution
HD:
1080P/60
Low latency:
Less than 200ms
Low bandwidth:
Ultra-low bandwidth, 1M for 1080P HD Conference
Operating voltage:
100VAC ~ 240VAC
Operating frequency:
50Hz ~ 60Hz
Max capacity:
one machine 120 users
Support:
H.264 (highest: High profile)
Bandwidth:
1Mbps for 1080p video conference available
Static Graphic:
XGA, HD720P, 640 x 480, 1280 x 1024, 1080P (1-60 frames)
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Full-sealing package of Products: We adopt full-sealing bubble film+strech film+wood frame (or wood box). It will keep the moist from entering into the package to make the products rusted.
Port
Guangzhou, Shenzhen or HK
Lead Time :
abt.10-15days

ITC 1080P HD Definition Video Conferencing Equipment Conference System with Project Solution



Product Description



1. Cloud based architecture

Adopt cloud based architecture, with distributed MCU







2. First class picture quality

With high 1080p quality, the highest video technology, rich in detail, makes you feel in the picture





3.Save much bandwidth

Home ADSL can run HD video conference system,

only 2M to run 1080p/60,

       1M to run 1080p/30,

       512k to run 720p,

       64k make the continuous picture and sound





4. With Strong network self-adaption ability

Adopt H.264SVC technology to adapt to high-lass network, available for interest network.

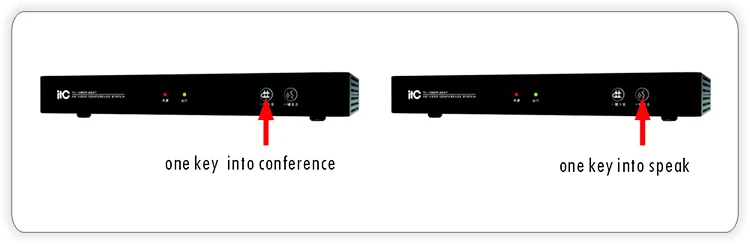

5. Easy operation, one key into conference

The branch venues can be one key enter co conference from the terminal, no need professional operators







6. Flexible expansion function

According to customer's applicatin needs to provide electronic white board, document sharing and remark, collaborative browsing, remote voting, video file sharing, etc

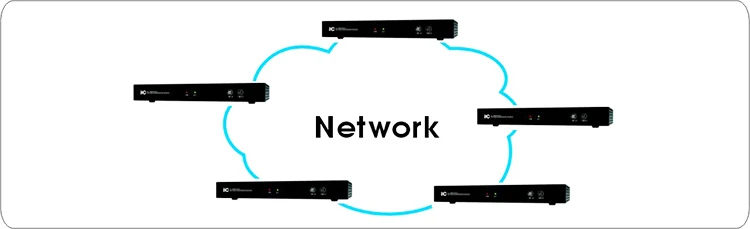

System connection





   TV-60MCU-16 is a high performance and large capacity multi-point control unit. It supports standard H.323 protocol, H.264 (high profile) codec and H.239 dual stream, and extensive network communication protocols. It is with full HD 1080P/60 terminal and media processing.

* Low latency: Less than 200ms



* Low bandwidth: Ultra-low bandwidth, 1M for 1080P HD Conference



* limited capacity: one machine 16 users, can be seamlessly upgraded to 120 users



Communication Protocol



* Multimedia Framework Agreement ITU-T H.323, IETF SIP



Video Features

1080P 120 users HD Video Conference System mcu

* Support: H.264 (highest: High profile)

* Video Resolution Rate: QCIF, CIF, 4CIF, 480P, D1, 720P, 1080P24, 1080P25, 1080P30,

  1080P50, 1080P60

* Support: mixed -speed, mixed video formats, mixed protocol conference

* Static Graphic: XGA, HD720P, 640 x 480, 1280 x 1024, 1080P (1-60 frames), English subtitles

* Supports H.239 dual stream digital technology, primary and secondary streams can reach

   resolution 1080P60

* Bandwidth: 1Mbps for 1080p video conference available



Audio Features

* Audio codec: G.711A/U, G.722, G.7221, G.722.1.C, G.723, iLBC, AAC, and so on.

* Lip Sync

* Multi-channel mixer

* Echo Cancellation

* Automatic Gain

* Noise cancellation



Network Features

1080P 120 users HD Video Conference System mcu

* With dual 100M/1000M network interface

* Line can be adapted to DDN, ISDN, ATM, SDH, VPN, dedicated satellite, ADSL, etc

* Span the router and firewall to ensure system security, support dual-network interface

* Supports H.264 SVC, anti network error code, no interruption to the meeting within a 5%

   packet loss

* Voice is with priority, support Qos strategy

* Support H235 signaling encryption, AES media stream encryption

* Conference access password

* Conference control password

* Administrator password



Conference Features

* Support multi-screen, multi-screen layouts, up to 16pictures per screen

* Supports split screen automatically

* Director conference mode

* Chairman conference mode

* MCU convene mode

* Meeting room mode

* Broadcast mode

* Free mode

* Supports voice activation function

* Support breakpoint re-invitation function

* Support remote control HD camera, backlight settings



Maintenance Management



* WEB management operation in English & Chinese version

* Device management

* User management

* Conference management

* Supports Telnet, ssh remote maintenance

* Zone management according to user and region characteristics

* Support large-scale terminal membership and management

* Software upgrade: local & remote upgrade

* IP network diagnosis: PING, packet loss, delay, jitter detection

* Status indication of network packet loss

* Supports event logging

* Support configuration import and export

* Restore factory settings
